Point-to-Point Cornices with a Diaphragm

A spectacular home design sometimes includes highly accurate cornices that are not only protective but also incredible to view and experience.

Click on image to get both caption and enlargement.

Completed cornice system

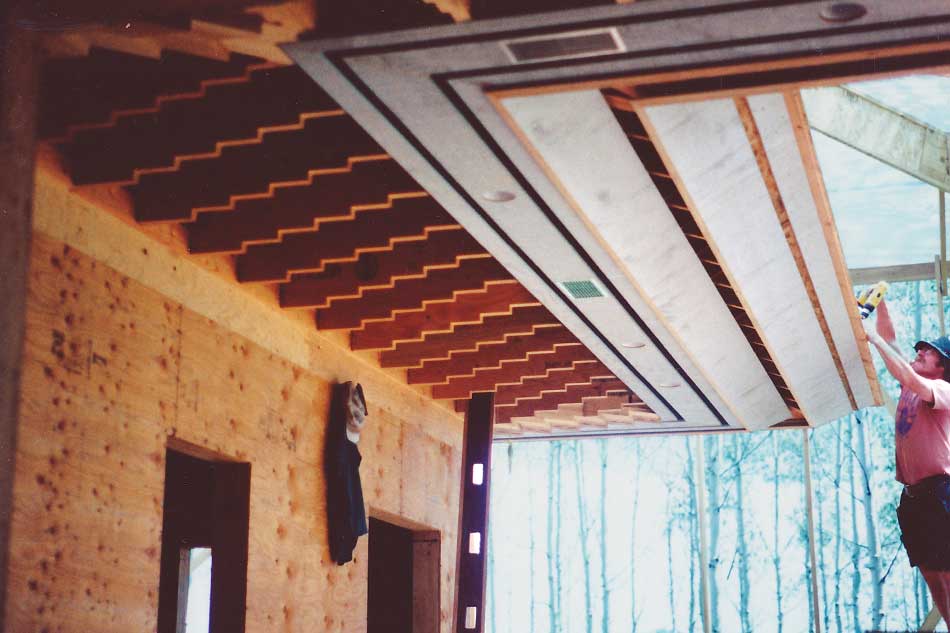

Engineered fascia material attached to substructure with stainless steel screws

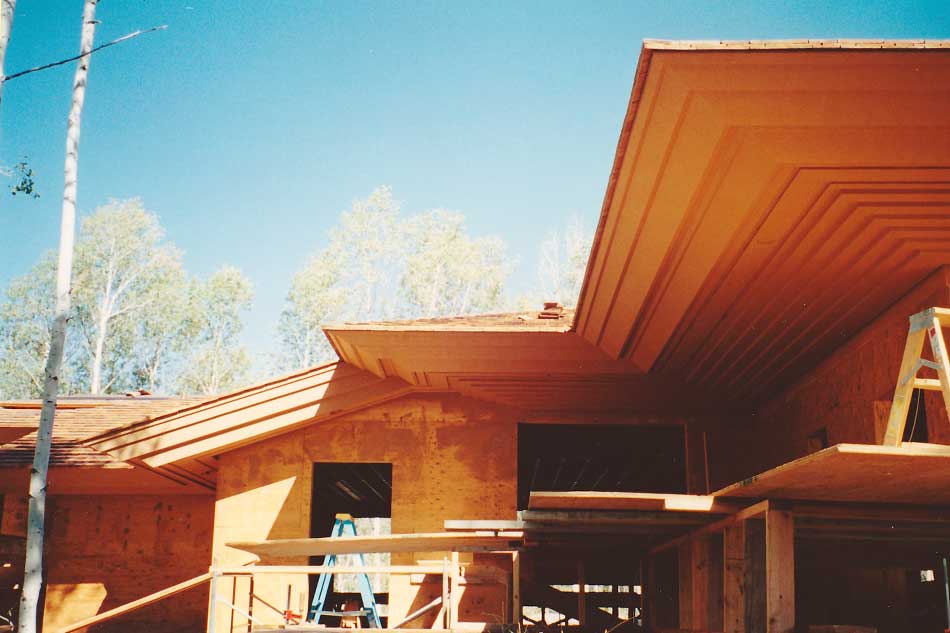

Cornice system with first solid body stain coating

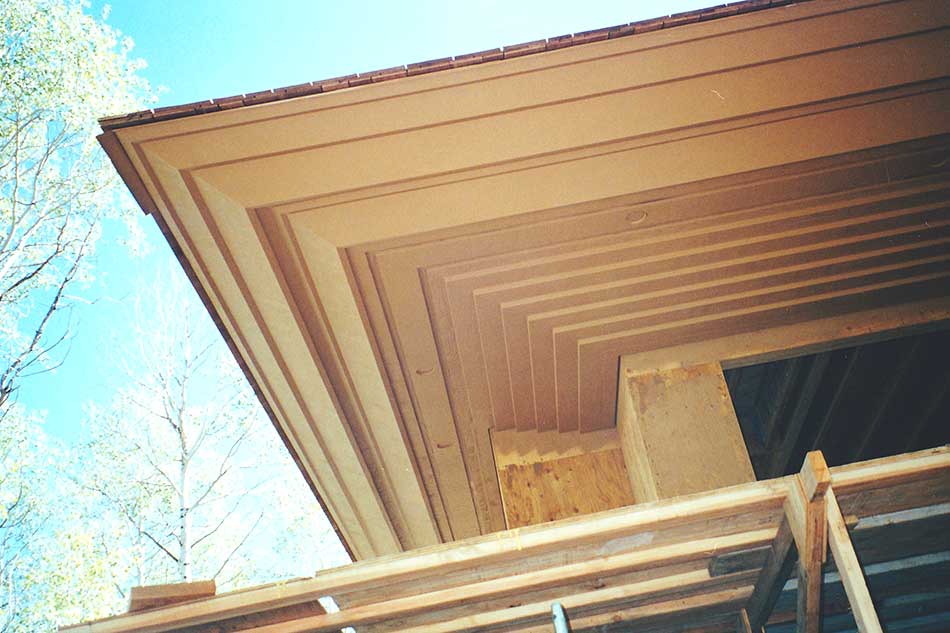

Cornice with secondary stain color added to alternating fascia pieces

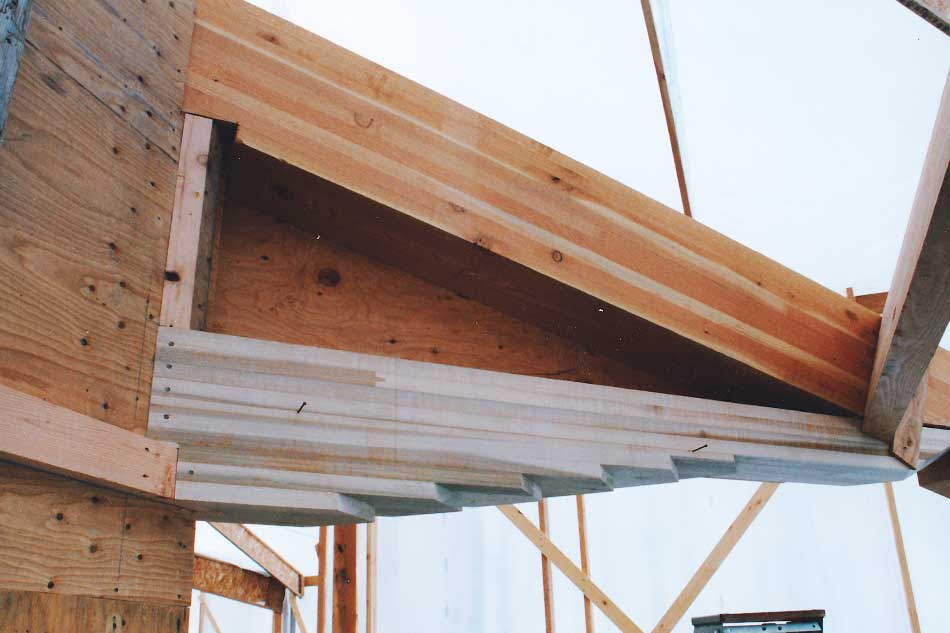

Five-foot-deep hip beam structure

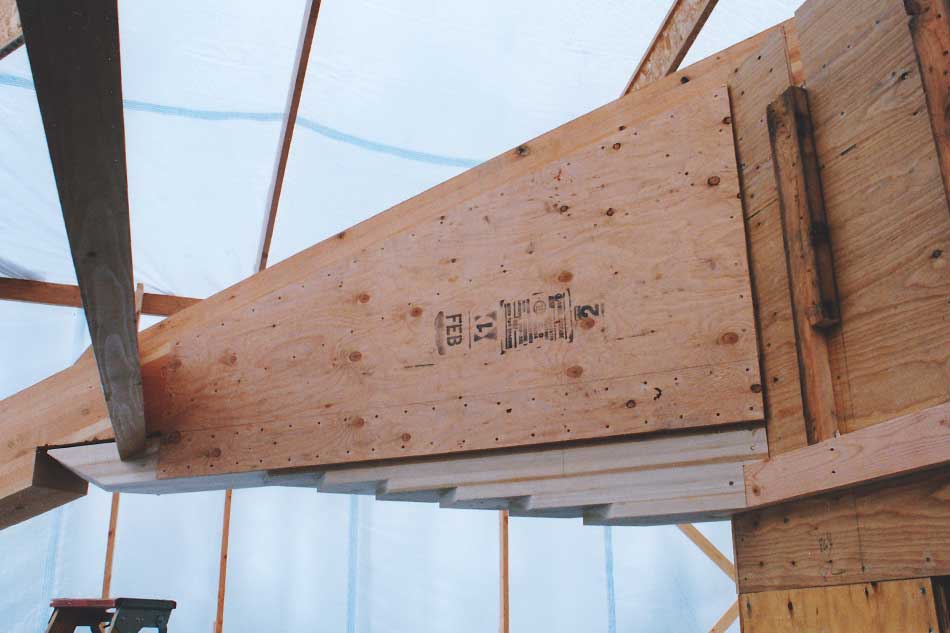

Adding diaphragm plywood overlay glued and nailed to both sides to give structural strength far beyond the specs

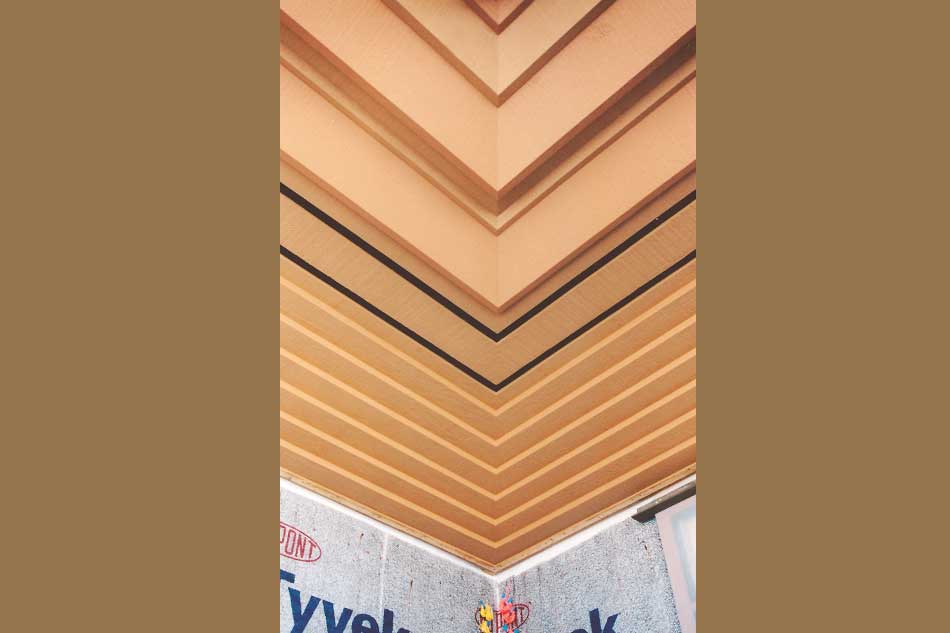

Underside of hip showing the fifteen-piece twelve-foot miter using splined-joint construction

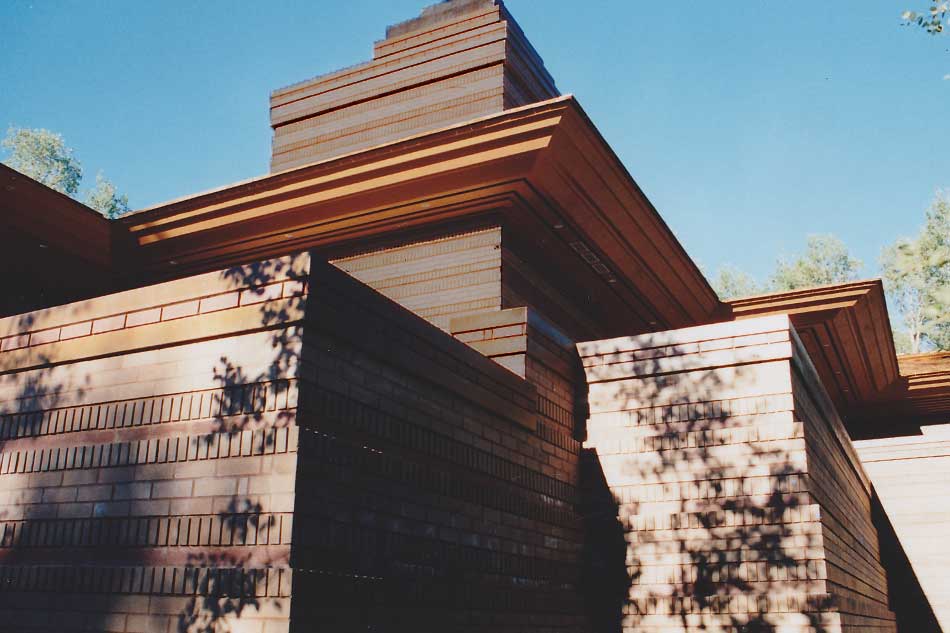

Point-to-point cornice with terrace walls

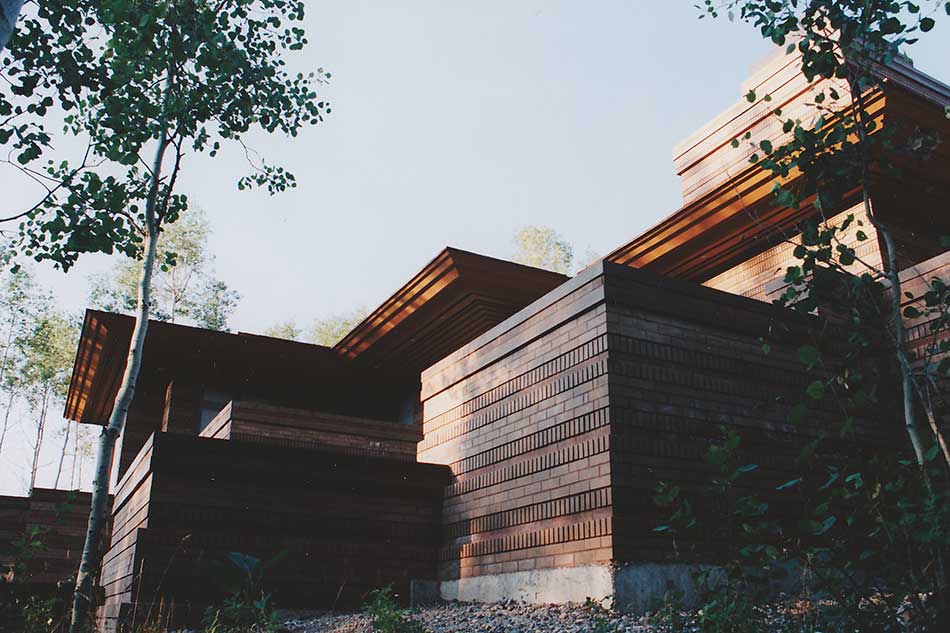

Point-to-point cornice
